Piston Assembly

Piston Assembly

Piston Assembly

part number:

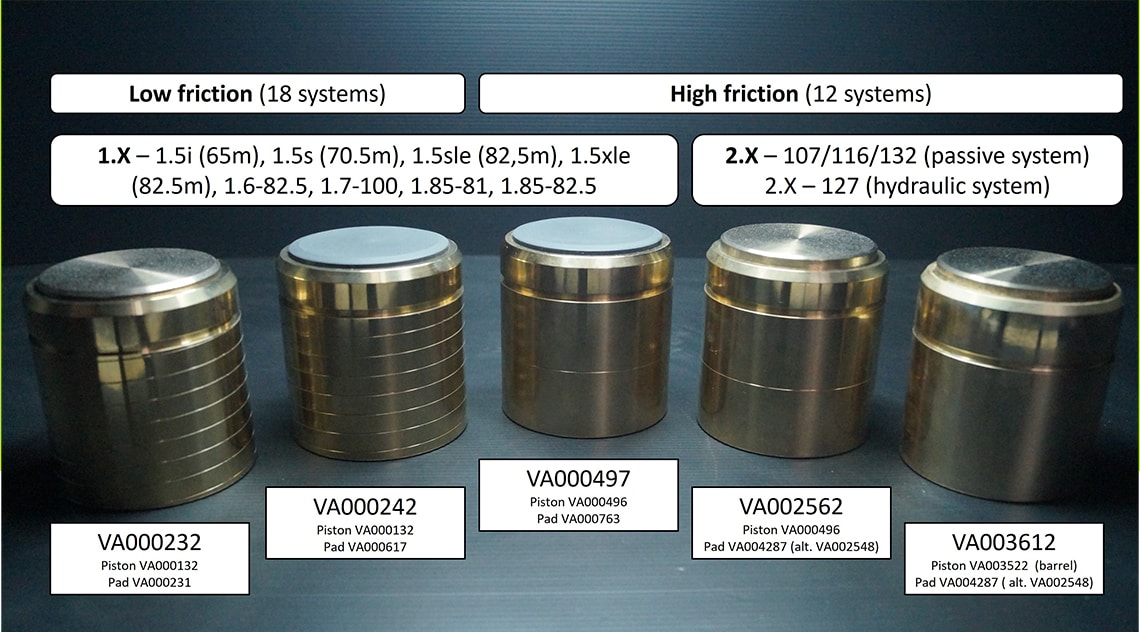

VA000497, VA000232, VA000242, VA002562, VA003612

Standard bronze piston equipped with the 7mm high friction Pad made from JHS-1604. Rotatable in the braking system to prevent any torque induced by the deformation of the machine main frame during yaw movement.

weight:
2.320 (kg/Unit)

Current Part Number:
VA000497

GE Part Number:
446W5893G001
123W1834G001

Additional PRODUCT COMPONENTS

Complete Passive Brake

O-Ring

Shim Ring

Piston Assembly

Retaining Ring

Grip Plug

Bushing

Hexagon Nut

Screw

Bushing

Disk Spring Package

Piston - No Pad

Brake Pad D80x9 (JHS-1604)

Brake Pad D80x9 (JHS-2105)

Barrel Piston - No Pad

Barrel Piston D94x97 w/ Brake Pad D80x9 (JHS-2105)

Brake Pad D80x9 (JHS-2106)
