N
TKMAX: 40050 Nm

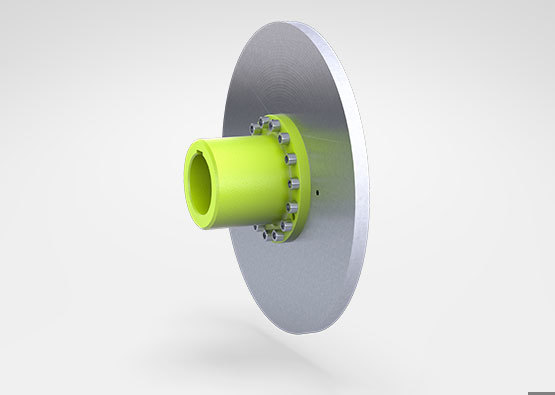

The Hub with Brake Disc Type N + NX is appropriate for all drives, where the brake is not located between motor and gearbox, like brake installation on the second gear box shaft or at the motor end shaft.
- Hub/disc combination for easy exchange of brake disc (type N)
- High accident prevention by fastening ring, no rotating nuts (type N)
- Exchange of brake disc without removing the hub (type N)
- Simple, one-piece design with 20 mm brake disc thickness for SB8.11 + SB17 series brakes (type NX)
- Hubs finish bored and keywayed acc. to DIN 6885
- Hubs unbored
- Hubs pilot bored
- Hubs with brake disc, dynamically balanced
- according to ISO 21940 Grade: G 2.5; G 6.3
- Hubs in special dimensions
- Hubs in special material
- Test certificate DIN EN 10204-3.1
