Compactus HPU
- Hydraulic Pressure:
- Up to 200 bar
Compactus is a pneumatically operated hydraulic pump system that multiplies pneumatic line pressure into hydraulic pressure that is sufficient to operate pressure applied disc brakes at rated capacity. The intensification ratio is 1:44.

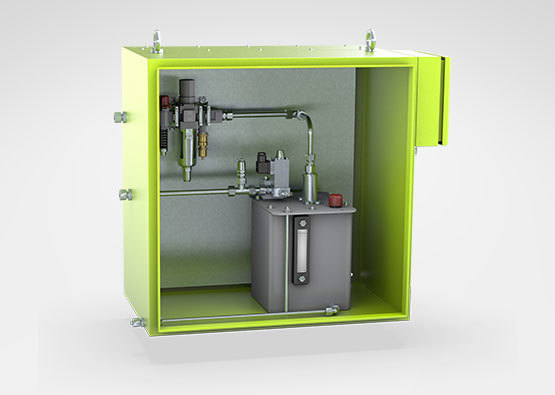

Compactus is supplied in an enclosed cabinet, that contains the pneumatically operated hydraulic pump with valves, pneumatic pressure regulator with filter unit and a shut-off valve. Optional control valve(s) is also available that makes it possible to control different brakes individually.
- Valve Controlled, two way hydraulic plunger pump
- Pneumatic Pressure regulator with filter unit and shut off valves
- Automatic stroke reversal using direct mounted, self piloted 4/2 way valve
- Pump Restarts automatically as soon as pressure drops to maintain constant pressure
- Up to 200 bar of Hydraulic Pressure
- Intensification Ratio 1:44
- Manual Control Valves
- Pressure Switches
- Pressure Transmitters
- Adjustable brake time unit
